The Gatling gun is a rapid-firing multi-barrel firearm invented in 1861 and named after its inventor: Dr. Richard Jordan Gatling. It is considered a forerunner of the modern electric motor-driven cannon.

The Gatling gun is one of the most famous of the early rapid-fire firearms, largely due to its association with Union forces during the American Civil War, which was the first war in which it was employed in combat. It should be noted that even though the Gatling gun was invented the same year as the start of that war, the Gatling gun was not in widespread use during the American civil war.

In 1870, Dr. Gatling sold his Gatling gun patents to Colt, but remained president of the Gatling Gun Company until it was fully absorbed by Colt in 1897. In 1893, he patented a Gatling gun that had an electric motor instead of the hand-crank and could fire 3,000 rounds per minute.

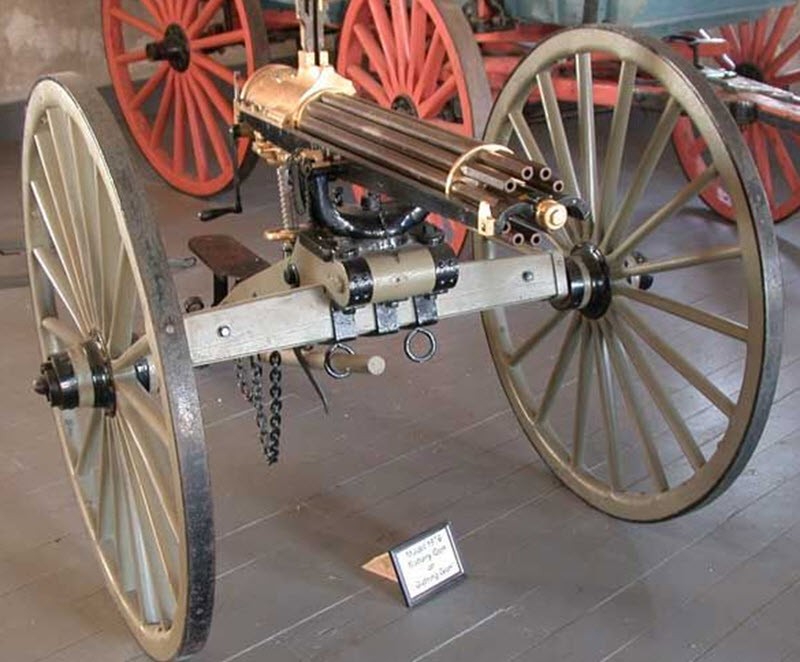

Gatling Gun

Design

The Gatlin gun had a cyclic multi-barrel design.

As the handwheel was cranked, the barrels would rotate. Each barrel sequentially loaded a single cartridge from a top-mounted magazine, fired off the shot when it reached a set position (typically 4 o´clock), and ejected the spent casing out of the left-hand side at the bottom. Once the barrel was empty, it was given sufficient time to cool before the rotation brought it back to the top position where it was gravity-fed another round.

Inventing the Gatling gun

After the outbreak of the American Civil War in April of 1861, the inventor Dr. Richard J. Gatling in Indianapolis devoted himself to the creation of a new firearm, and the Gatling gun was the result. He patented it in November 1861 and founded the Gatling Gun Company the following year.

He wrote that he created it to reduce the size of armies and thereby reduce the number of deaths by combat and disease, and also to show how futile war is. He had noticed that a majority of the soldiers dying the in Civil War died from disease, not from gunshots.

It occurred to me that if I could invent a machine gun which could by its rapidity of fire, enable one man to do as much battle duty as a hundred, that it would, to a large extent supersede the necessity of large armies, and consequently, exposure to battle and disease would be greatly diminished.” – Dr. Gatling in 1877

When designing the Gatling gun, Dr. Gatling was inspired by how his seed planter worked.

Production and early sales

  • The first prototype was finished in 1861.
  • The first six production guns were destroyed during a fire in the factory in December 1862. All of them had been manufactured at Gatling´s own expense. After the fire, he commissioned another 13 to be manufactured at the Cincinnati Type Factory.
  • General Benjamin F. Butler purchased 12 Gatlin guns and Admiral David Dixon Porter bought one.
  • In 1866, the United States government officially bought their first Gatling guns. (The American Civil War ended in 1865.)

Short facts about the Gatling gun

When was it invented?

1861

Where was it invented?

In the United States

Who invented and designed it?

Richard Jordan Gatling

What type of gun is it?

It is a rapid-fire gun and hand cranked machine gun.

Action: Crank-handle

Caliber: .308 inches (7.8 mm)

Barrels: 6-10

What was the rate if fire?

  • 200 rounds per minute in .58 calibre
  • 400-900 rounds per minute in .30 calibre

In 1893, Gatling patented a new type of Gatlin gun that had an electric motor instead of the hand-crank, and this version of the Gatling gun could fire 3,000 rounds per minute.

When was it produced?

The first prototype was created in 1861, and production took place in 1862-1903.

Examples of users

United States

British Empire

France

Russian Empire

Empire of Japan

Edo (Tokugawa) Shogunate

Qing Empire
Siam Empire
Korean Empire
Chile
Peru

Wars in which the Gatling gun was used

American Civil War
Anglo-Zulu War
Indian Wars
Spanish–American War
Philippine–American War
Boxer Rebellion
War of the Pacific
Boshin War

The Gatling gun was not only used in wars. One example of non-war used is from 1877, when the Pennsylvania militia used it in Pittsburgh during the Great Railroad Strike.

Manufacturers of the Gatling gun

Eagle Iron Works
Cooper Firearms Manufacturing Company
Colt Manufacturing Company
American Ordnance Company

Specifications

Mass

170 lb (77.2 kg)

Length

42.5 in (1,079 mm)

Barrel length

26.5 in (673 mm)

Cartridges

.30-40 Krag
.45-70 Government
.30-06 Springfield
.43 Spanish
11x60mm Mauser
